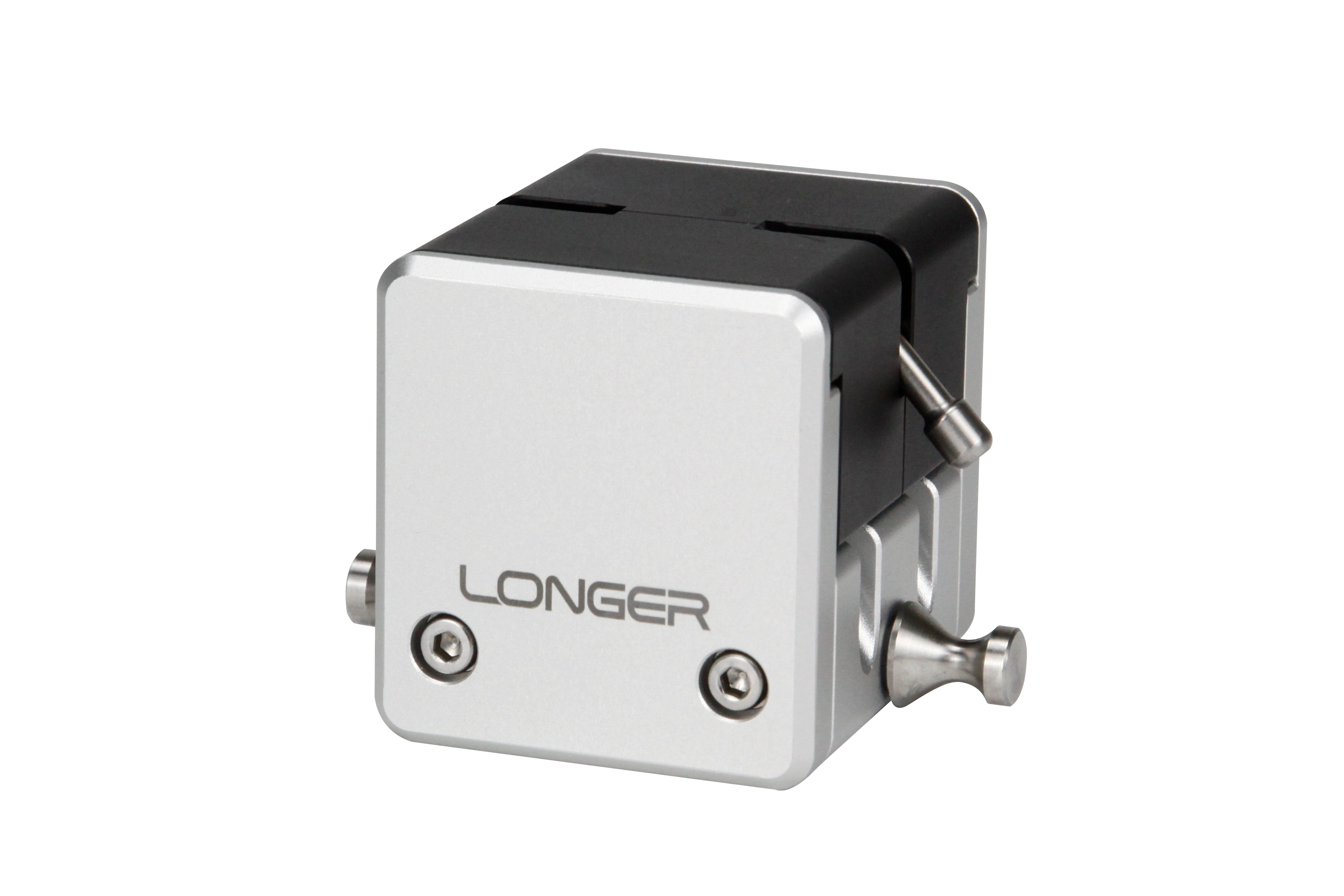

PFH01 Pumpenkopf für dPOFlex PFU zur Mikroliter-Dosierung - 12 Rollen
ca. 2-3 Wochen
Artikelnr.
PFH01
$ 1.996,40
| Roller Material | Roller Number | Speed (rpm) | Tubing ID (mm) | Max Flow Rate (mL/min) | Recommended Filling Volume (Accuracy≤±1%) |
Max Filling Volume per Second | Recommended Filling Nozzle ID (mm) |
| Stainless Steel | 12 | ≤350 | 0.5 | 7 | 30μL | 118μL | 0.3 or 0.6 |
| 0.8 | 17 | 42μL | 269μL | 0.6 | |||
| 1.2 | 34 | 90μL | 534μL | 1 | |||
| 1.6 | 63 | 132μL | 987μL | 1 or 1.6 | |||
| 2.4 | 104 | 400μL | 1.6mL | 1.6 | |||
| 3.6 | 159 | 760μL | 2.47mL | 1.6 or 3.2 |
