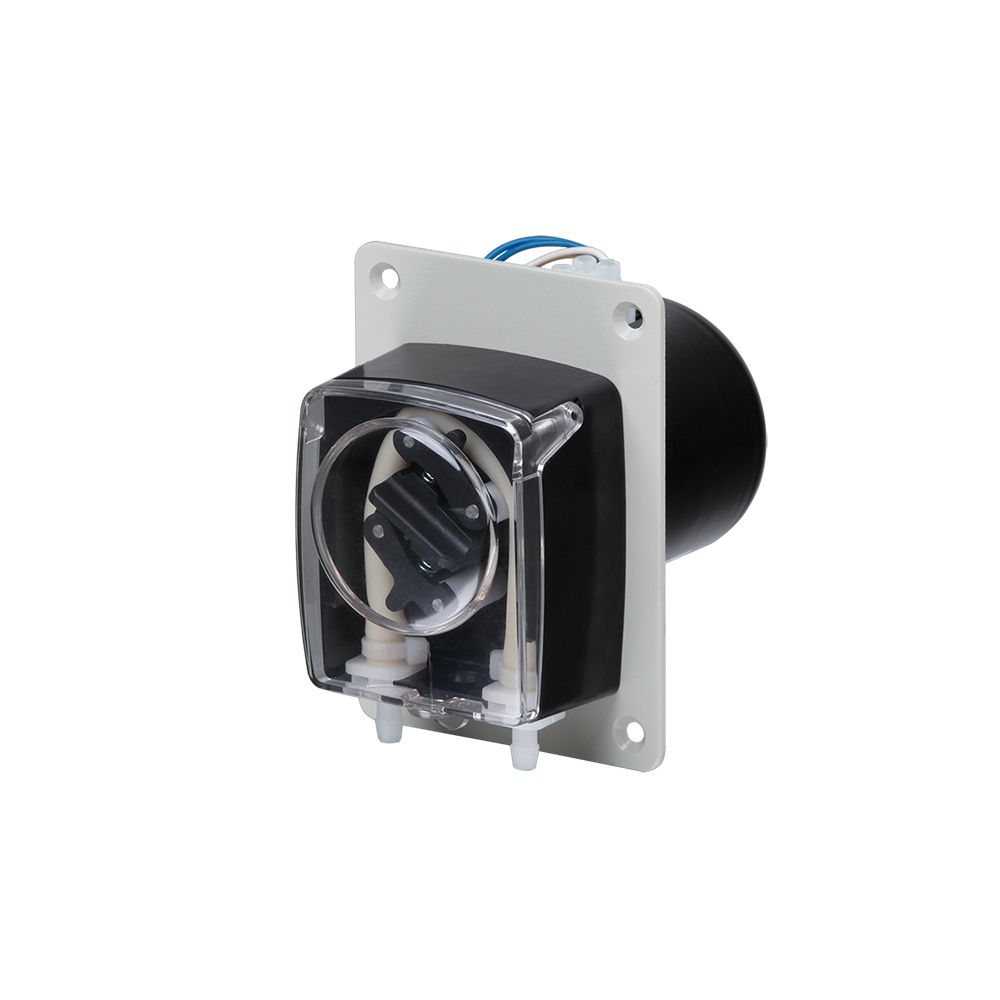

G98-D102-H15 OEM Schlauchpumpe 24VDC, 98U/min, bis zu 164 ml/min
DC 24V / 15W Motor
sofort lieferbar
Artikelnr.
G98-D102-H15
$ 198,00
Technische Spezifikationen:
| Model | Installation Mode |
Product Code |
Speed (rpm) |
Motor | Power Supply |
Speed Tolerance |
Motor Life |
Operating Tem. |
Relative Humidity |
| G14-D2﹠TH15 | Panel | 05.52.01A | 14 | 60 DC Gear Motor |
DC 12V /15W |
≤±10% | 2000 Hours |
0℃-40℃ | ＜80% |
| G28-D2﹠TH15 | 05.52.02A | 28 | |||||||
| G56-D2﹠TH15 | 05.52.03A | 56 | |||||||
| G93-D2﹠TH15 | 05.52.04A | 93 | |||||||
| G15-D102﹠TH15 | 05.54.01A | 15 | DC 24V /15W |
||||||
| G30-D102﹠TH15 | 05.54.02A | 30 | |||||||
| G59-D102﹠TH15 | 05.54.03A | 59 | |||||||
| G98-D102﹠TH15 | 05.54.04A | 98 | |||||||
| G15-A2﹠TH15 | 05.56.21A | 15 | 60 AC Gear Motor |
DC 220V /10W |
5000 Hours |
||||
| G30-A2﹠TH15 | 05.56.22A | 30 | |||||||
| G62-A2﹠TH15 | 05.56.23A | 62 | |||||||
| G100-A2﹠TH15 | 05.56.24A | 100 |
Abmessungen:
Förderraten / Schläuche:
| Motor | DC Gear Motor | AC Gear Motor | ||||||||||
| Power Supply | DV 12V | DV 24V | AC 220V | |||||||||
| Speed (rpm) | 14 | 28 | 56 | 93 | 15 | 30 | 59 | 98 | 15 | 30 | 62 | 100 |
| Tubing | Flowrate (ml/min) | |||||||||||
| 0,8 x 1,7mm (ID x WT) (13#) | 1 | 2 | 4 | 7 | 1 | 2 | 4 | 7 | 1 | 2 | 4 | 7 |
| 1,6 x 1,7mm (ID x WT) (14#) | 3 | 6 | 12 | 20 | 3 | 7 | 13 | 22 | 3 | 7 | 14 | 22 |
| 2,4 x 1,7mm (ID x WT) (19#) | 7 | 14 | 28 | 47 | 8 | 15 | 30 | 49 | 8 | 15 | 31 | 50 |
| 3,2 x 1,6mm (ID x WT) (16#) | 11 | 22 | 45 | 74 | 12 | 24 | 47 | 78 | 12 | 24 | 50 | 80 |
| 4,8 x 1,6mm (ID x WT) (25#) | 23 | 47 | 94 | 155 | 25 | 50 | 99 | 164 | 25 | 50 | 104 | 167 |
